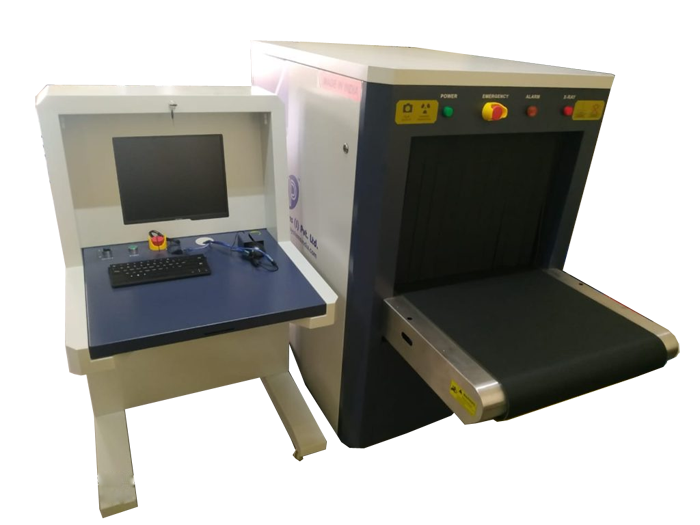

We are Manufacturer, Supplier, Exporter of X Ray Baggage Scanner PSIPL 6550, Baggage Scanning Machines and our set up is situated in Pune, Maharashtra, India. It is use in Bank, Hotels, Corporate Offices, shopping-mall, hospitals, Prison, Factories, Museums, etc. This range is also known as X Ray Baggage Scanners / Inspection / Scanning / Security System, X Ray Luggage Scanners / Inspection / Scanning / Security System, Baggage Scanner / Inspection / Scanning / Security Machine, Luggage Scanner / Inspection / Scanning / Security Machines and our set up is situated in Pune, Maharashtra, India. It is use in Bank, Hotels, Corporate Offices, shopping-mall, hospitals, Prison, Factories, Museums, etc.


Model No. - PSIPL 6550

PRODUCT DETAILS :

Tunnel dimensions 650 x 500 MM
Penetration level 30/35MM Steel
Multiple viewing modes Organic, B/W, Negative
Rotation facility available
Moveble or on site checking models or vehicle mountable also available ( optional )



TECHNICAL SPECIFICATIONS :

Tunnel Size (mm) 650(L) x 500(W)
Speed (m/s) Conveyor 0.22
Height (mm) Conveyor Max 700
Load (Kgs.) 150
Penetration Typical 32mm steel, Guarantee 30mm steel
Power Consumption Max 0.8 KVA
X-Ray Generator 160 KV, oil cooling, from bottom to top
Wire Resolution Typical AWG 40, Guarantee AWG 38
X-Ray Leakage Typical 2.5/-IGy/h, guarantee 3.5 /-IGy/h
Boundary Leakage Typical 1.0/-IGy/h, guarantee 1.5 /-IGy/h
Operation Power 220 VAC (±10%) 50±3Hz
Operation temperature / Humidity 0 to 45 Degree C/ 5%-95% (noncondensing)
Unit Weight Approx. 600 Kg.

INSTALL APPLICATIONS :

bank

Bank

Hotels

Hotels

Corporate Offices

Corporate Offices

shopping-mall

shopping-mall


hospitals

prison

Prison

factory

Factories

high security areas

Museums

resorts

Resorts

temples

Temples

railways

Railways

Metros

Metros

stadium

Stadiums

court

Courts

government orgnization

Government Organizations

embasis

Embasis

port

Ports

milletry-offices

Milletry-Offices
