We are Manufacturer, Supplier, Exporter of X Ray Baggage Scanner PSIPL 6040 B, Baggage Scanning Machines and our set up is situated in Pune, Maharashtra, India. This range is also known as X Ray Baggage Scanners / Inspection / Scanning / Security System, X Ray Luggage Scanners / Inspection / Scanning / Security Systems, Baggage Scanners / Inspection / Scanning / Security Machines, Luggage Scanners / Inspection / Scanning / Security Machines and our set up is situated in Pune, Maharashtra, India. It is use in Bank, Hotels, Corporate Offices, shopping-mall, hospitals, Prison, Factories, Museums, etc.

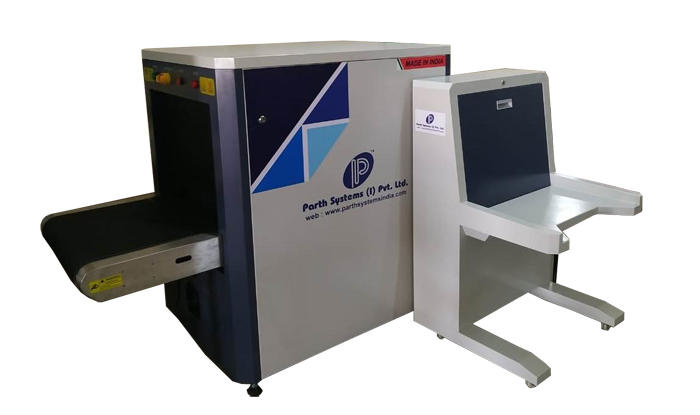

Model No. - PSIPL 6040 B

PRODUCT DETAILS :

Tunnel dimensions 600 x 400 MM
Penetration level 30/35MM Steel
Multiple viewing modes Organic, B/W, Negative
Rotation facility available
Moveble or on site checking models or vehicle mountable also available ( optional )

TECHNICAL SPECIFICATIONS :

Tunnel Size (mm) 600(L) x 400(W)
Speed (m/s) Conveyor 0.22
Height (mm) Conveyor Max 700
Load (Kgs.) 150
Penetration Typical 32mm steel, Guarantee 30mm steel
Power Consumption Max 0.8 KVA
X-Ray Generator 160 KV, oil cooling, from bottom to top
Wire Resolution Typical AWG 40, Guarantee AWG 38
X-Ray Leakage Typical 2.5/-IGy/h, guarantee 3.5 /-IGy/h
Boundary Leakage Typical 1.0/-IGy/h, guarantee 1.5 /-IGy/h
Operation Power 220 VAC (±10%) 50±3Hz
Operation temperature / Humidity 0 to 45 Degree C/ 5%-95% (noncondensing)
Unit Weight Approx. 550 Kg.

INSTALL APPLICATIONS :

bank

Bank

Hotels

Hotels

Corporate Offices

Corporate Offices

shopping-mall

shopping-mall


hospitals

prison

Prison

factory

Factories

high security areas

Museums

resorts

Resorts

temples

Temples

railways

Railways

Metros

Metros

stadium

Stadiums

court

Courts

government orgnization

Government Organizations

embasis

Embasis

port

Ports

milletry-offices

Milletry-Offices
